OUR 2023 ARENA 3.5 TONNE DEMONSTRATOR IS FOR SALE
BASED ON A 2016 REGISTERED CITROEN RELAY WITH ONLY 36K MILES
PRICED AT £33,330 PLUS VAT
PRICE REDUCED BY OVER £2,000
(was £42,000 now reduced to £39,995 incl. vat)
THIS ARENA MODEL CAN BE VIEWED AT FELBRIDGE SHOW CENTRE
The full specifications are below
This beautiful Equiuhunter Arena 3.5t model offers safe and comfortable equine transport with an absolute focus on strength and extremely robust and safe construction. It provides spacious equine travel with a stallion-designed horse area.
PRICED AT £33,330 PLUS VAT
FOR MORE INFORMATION, PLEASE CONTACT CHRIS ON …
OFFICE: 01342 545030
MOBILE: 07904 818389
EMAIL: SALES@EQUIHUNTER.COM
SEE THE FULL ONLINE IMAGE GALLERY BY CLICKING HERE
SEE OVER 130 IMAGES
Some more images are in the galleries below…
The Arena benefits from many high strength features such as a full-size steel cab wall bulkhead and an ultra-thick bottom ramp door that is manufactured with box section aluminium, it’s almost 3 inches thick and is braced to the body with a heavy-duty stainless steel full-width piano hinge. We also use hi-grip rubber matting and fit lateral aluminium anti-slip struts.
In the horse area, the floor is manufactured using aluminium with a strong rubber one-piece rubber matting on top. The wheel arch covers benefit from a hot sprayed rubber coating that adds strength and also has a sound deadening quality for those moments when impatient horses paw the arches.
A full-length aluminium strengthening strut is attached to the offside wall just above the EVA lined kick boards. We fit a doubled-skinned insulated roof and have added high-intensity LED lights that offer full illumination of the tramp when loading and unloading at night. Automatic night lights (low lighting) are fitted and turn when the vehicle lights are lit.
The top ramp door rises on powerful gas rams and rests open at a high angle of attack to endeavour not to spook nervous horses. A 4-way roof vent offers a high level of ventilation in conjunction with large tinted opening bonded windows adjacent to both stall ends.
We also fit an important safety feature, an “open top door” alarm to alert you in case of non-closure before setting off.
The two-part partition is braced with a 3-inch tubular aluminium frame to both partition sections. We have also fitted drain holes. A large storage area is available in the luton cab area, this also features a locking hatch door. There is a twin camera CCTV system with both horse area and reversing cameras.
FULL SPECIFICATIONS
The Chassis Vehicle
Citroen Relay 35 L3H2 Enterprise
2016 registered chassis vehicle with 36k miles
Engine size 2198cc
4 cylinder fuel injected turbo diesel
Engine power 127 BHP
First registered 20th June 2016
MOT expires 31st October 2024
12 months warranty to chassis and coach build
In the cab
Bluetooth
Touchscreen radio
Dash-mounted Navman SatNav
Media plug in USB connection
Reupholstered cab seats in cream easy clean vinyl
Embroidered Equihunter Logo to headrests
Cruise control/Speed limiter functions
Removable rubber floor mat
Dash-mounted CCTV monitor
Windscreen mounted phone holder
12v USB power outlet
PRICED AT £33,330 PLUS VAT
FOR MORE INFORMATION, PLEASE CONTACT CHRIS ON …
OFFICE: 01342 545030
MOBILE: 07904 818389
EMAIL: SALES@EQUIHUNTER.COM
In the horse area
Horse Area Dimensions (Metric) – H: 2.41 x W: 2.11 x L: 2.60
Ultra-strong ramp (3″ deep) in box section aluminium
Very high strength heavy-duty stainless steel ramp hinge
Payload 1040kgs
Insulated twin-skinned roof
Two large opening locking bonded tinted windows, one per stall
White aluminium coving
Twin liquid drain holes
High-intensity (low power consumption) switched LED lighting
Automatic blue night lighting
Hi-grip rubber ramp matting with lateral aluminium struts
Rubber ramp gaiter fitted
Roof vent – manual 4-way
Twin high-pressure rams to ramp
Twin high-pressure rams to the rising top ramp door
A stainless steel locking mechanism
Stallion designed two-part partition
Partition strengthening with tubular aluminium frame
Aluminium sheet flooring
One-piece rubber floor mat
Rubber-covered wheel arch covers
Adjustable width partitions
Vertical “H” shape partitions with sprung piston locking
EVA covered kickboards
Lateral strengthening strut to offside sidewall
Aluminium beading for added strength
Upper ramp “door open” in-cab warning alarm
(triggers when activating ignition with open top door)
Twin locks to the top ramp door
High opening angle to the top ramp door
Rubber partition tie-back
4 tie rings, 2 per stall
Solid full height & width bulkhead to the living area
Two stainless sprung bolts to living door locks
In the living area
Living Area Dimensions (Metric) – H: 2.41 x W: 2.11 x L: 1.05
Aluminium checker-plate flooring
Seating for two in a bench seat
Cushion pad to bench seat in cream easy clean vinyl
Coat hooks
Under-seat storage
High-intensity switched LED light
Wardrobe with locking door
Wardrobe with recessed boot storage, hanging rail & high shelf
Twin folding steel saddle poles
Two bridle hooks
Twin doors to the horse area each with stainless sprung bolts
Two further sprung bolts (anti-kick) to door bases
Locking rear door with large locking bonded tinted opening window
Exterior Features
Strong aluminium-covered rear step with steel support underneath
Reversing sensors
Rear door sprung retainer

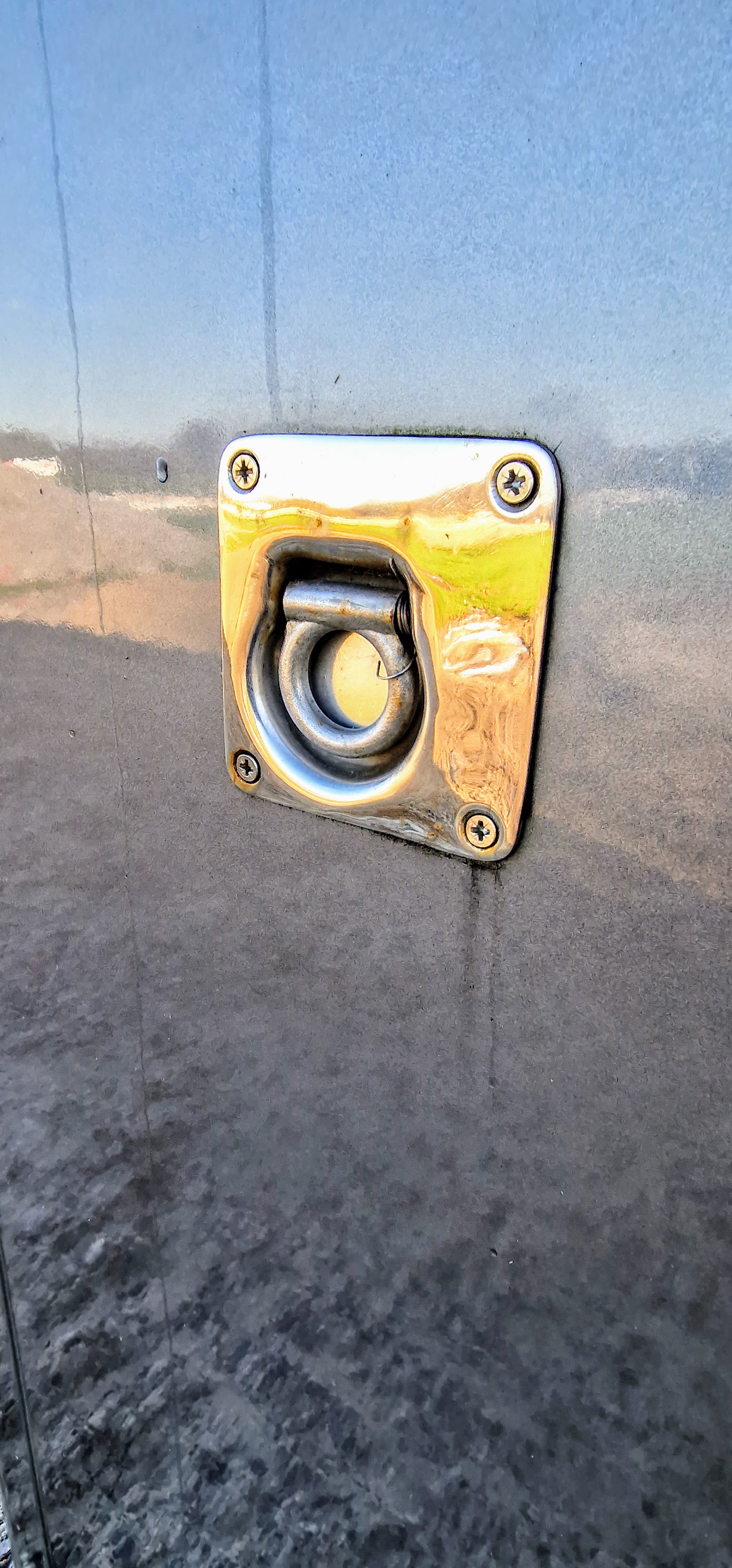

Two side wall-mounted external stainless steel sprung tie rings
Classic Equihunter paint design and graphics styling
Finished in metallic grey paint
Reversing camera
High and low-level rear vehicle lighting
