The Arena 3.5 Tonne Horsebox

INTRODUCING THE EQUIHUNTER ARENA, OUR 3.5 TONNE MODEL


EACH HANDCRAFTED BUILD IS UNIQUE TO EACH CUSTOMER


A highly bespoke 2 stall horsebox built to your individual requirements

THE EQUIHUNTER ARENA can be made as a value model livestock carrier with a payload averaging 1,050 kgs or more, or with extra living area features added, can offer luxury with overnight stays

Arena prices start at just £19,990 plus a chassis and VAT, plus your choice of a wide selection of optional extras

Please contact us for detailed Arena pricing, our details are at the bottom of the page or visit the ‘contact us’ page here


The Arena can be built on a used or new chassis vehicle and designed for each customer’s budget and design requirements. We will also build on suitable customer supplied chassis vehicle

Please contact us for more information about the Equihunter Arena, our details are below. Ask us to send you our Information Pack email for our Arena model …

Arena Information Pack Request


CONTACT US

t: 01342 545030
m: 07904 818389
e: sales@equihunter.com
web: equihunter.com

LUXURY BRITISH BUILT EQUINE TRANSPORT VEHICLES

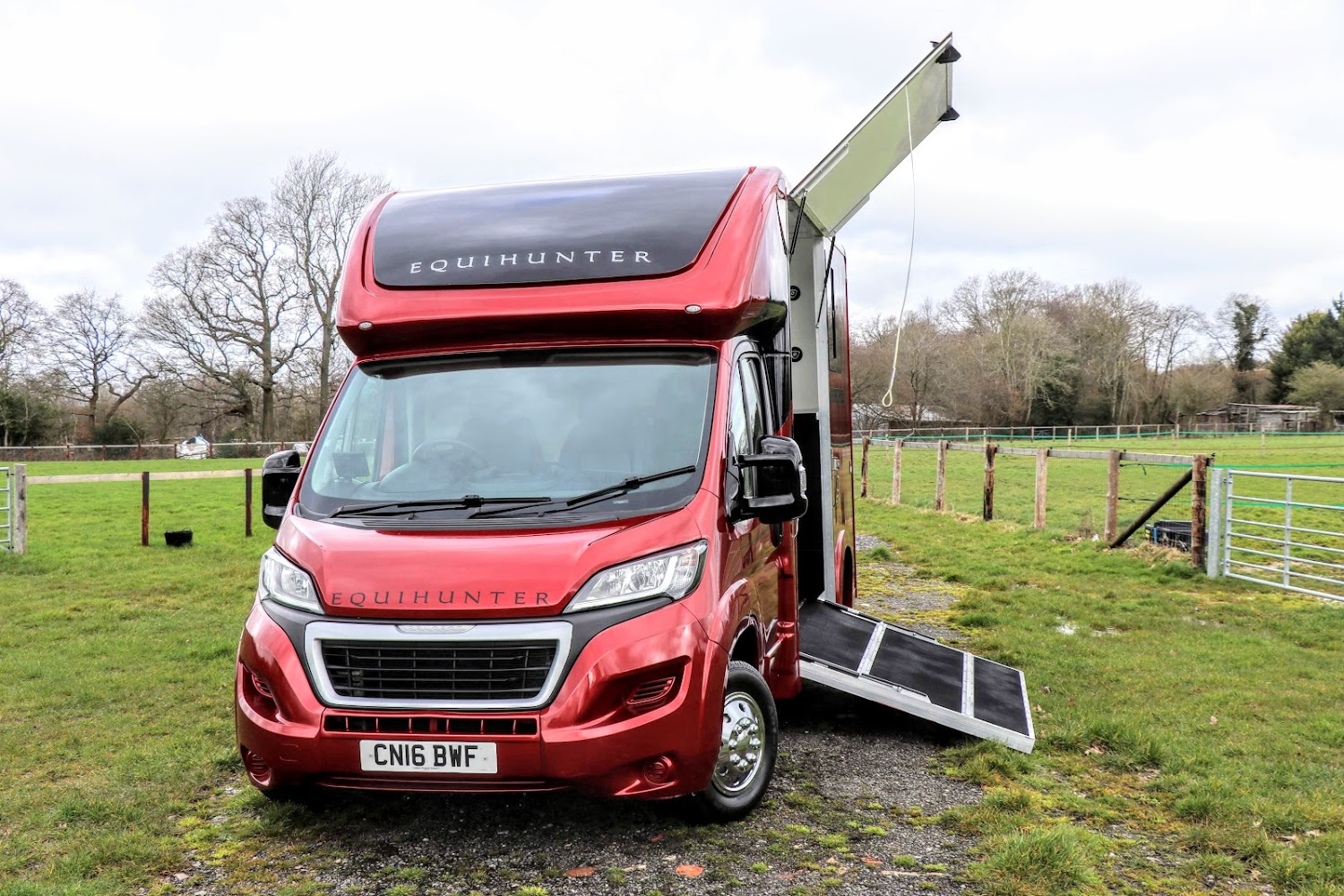

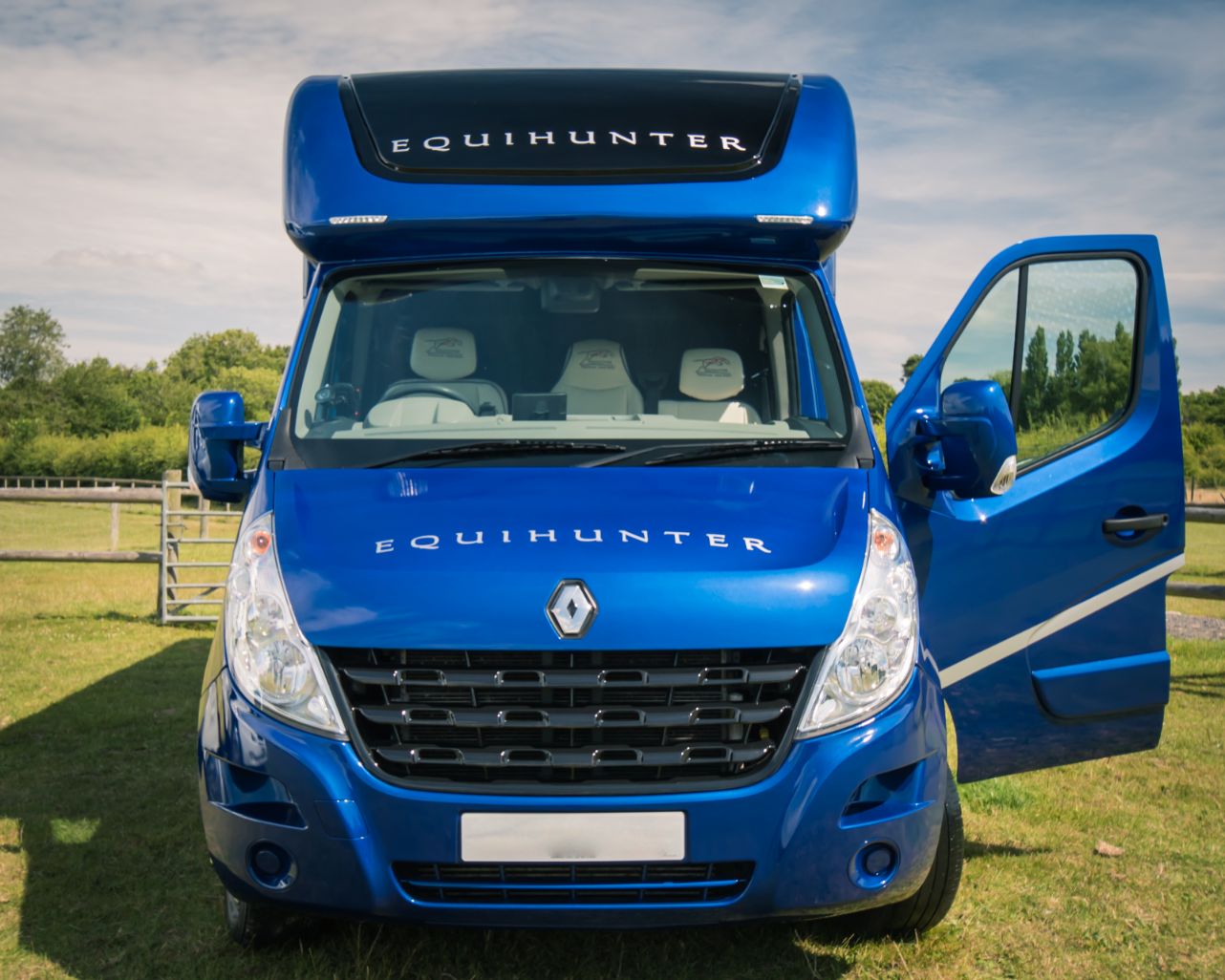

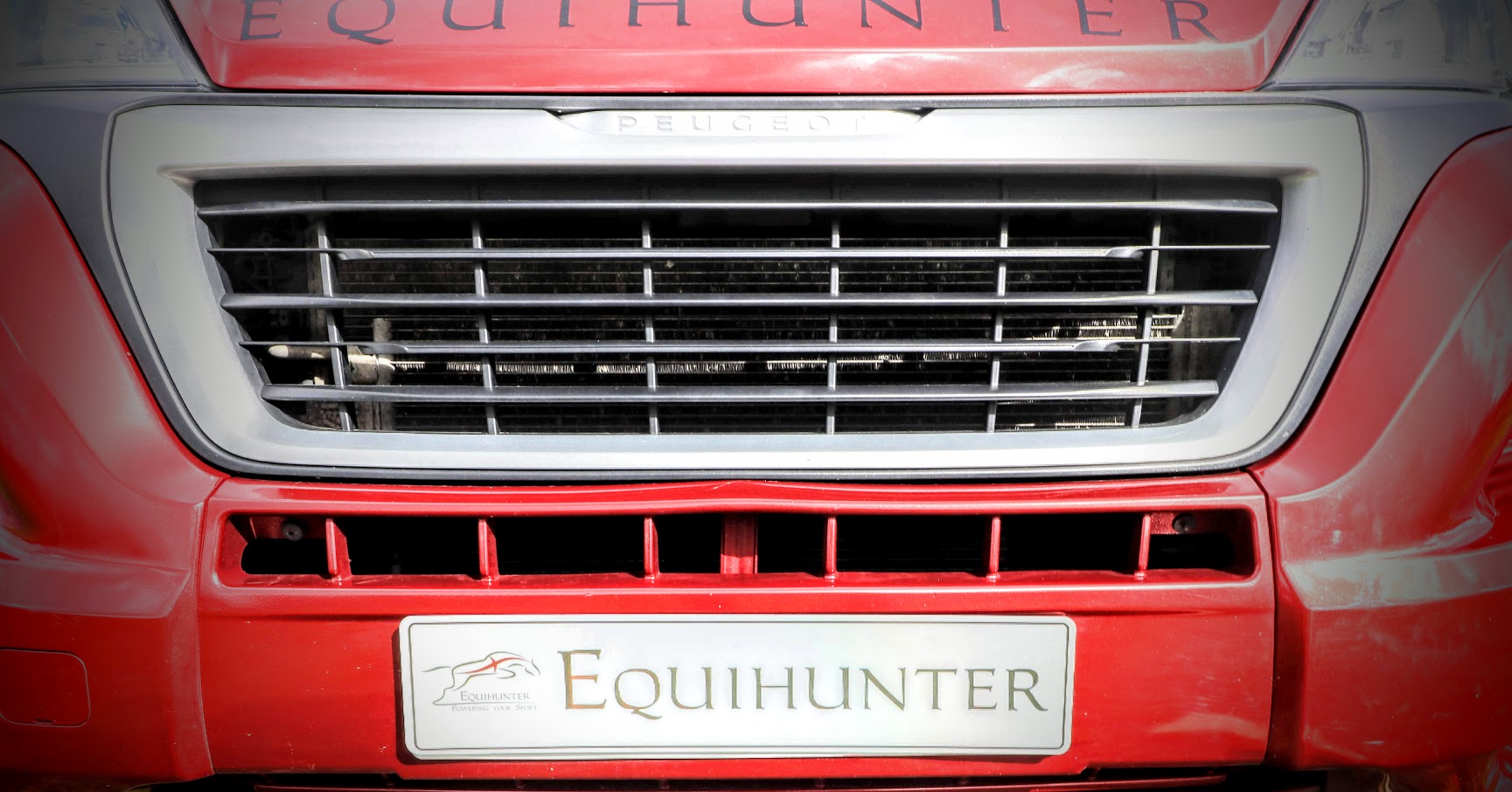

The Arena model is our 3.5-tonne horsebox and is built upon a long-wheelbase chassis from either the PSA Group, who make the Citroen Relay, Peugeot Boxer or Fiat Ducato, or the Renault Master and Vauxhall Movano built by Renault.

It is stalled for two in a reverse travel configuration and robustly built and manufactured with a classic stallion design horse area. It benefits from standard features such as lightweight and tough twin skinned GRP sidewall panels, an insulated roof, plus a horizontally split ramp and top door. You can also elect to have a barn door configuration on the upper ramp doors at no extra cost.

It offers a safe and spacious journey for your horses.

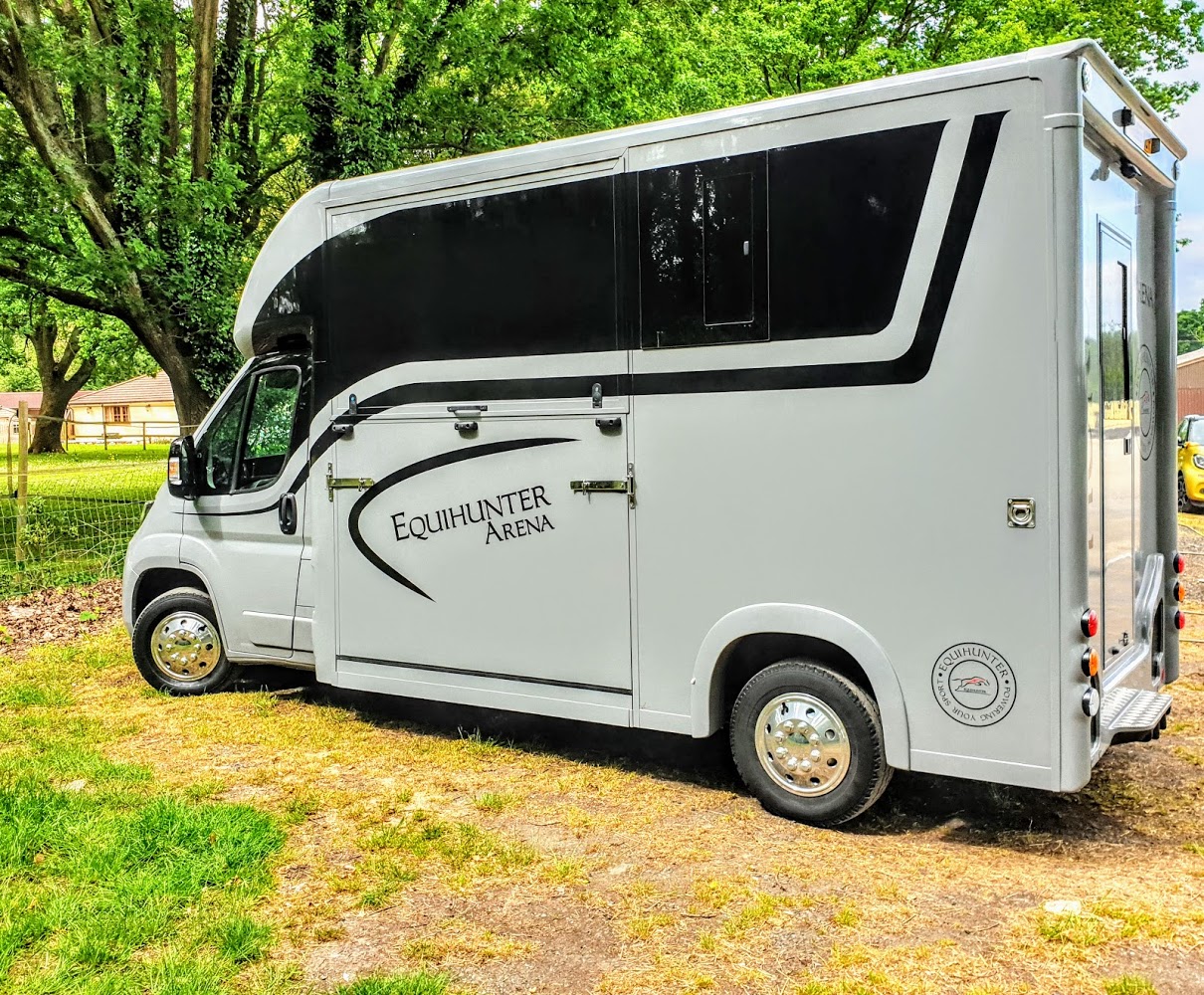

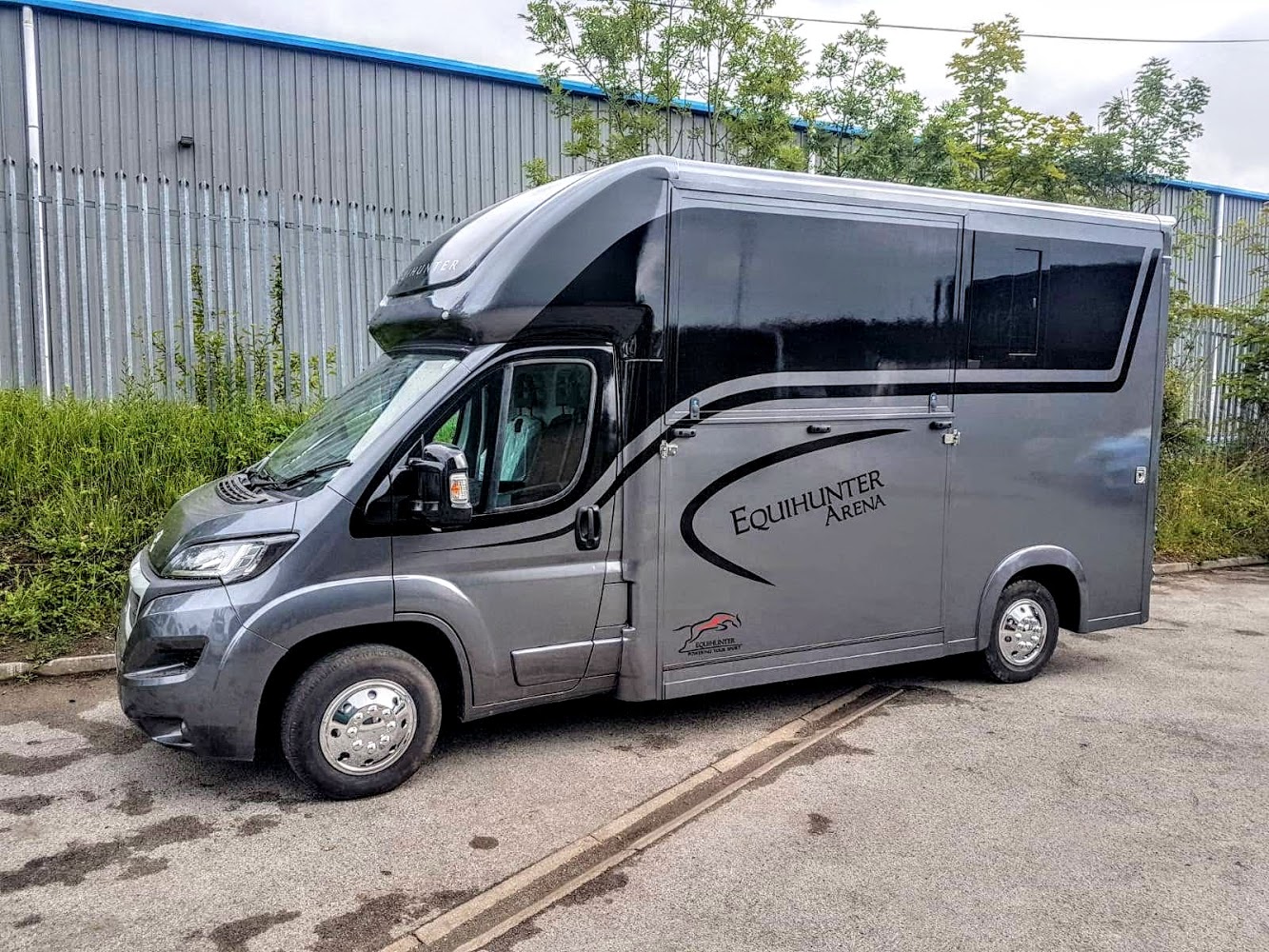

Equihunter Arena 3.5t Horsebox

Equihunter Arena 3.5t Horsebox

We finish the horse area flooring in a sheet aluminium laid on the original steel monocoque base, this is then fully covered and sealed with a Dunlop style high grip rubber matting for extra payload, or alternatively with our original full weight solid rubber alternative floor covering which is a little heavier but ideal for use with road pins or for the heavier horse. A gaiter to the ramp hinges makes for easy cleaning.

For safety, we will only ever build on chassis vehicles fitted with an original full steel cab bulkhead.

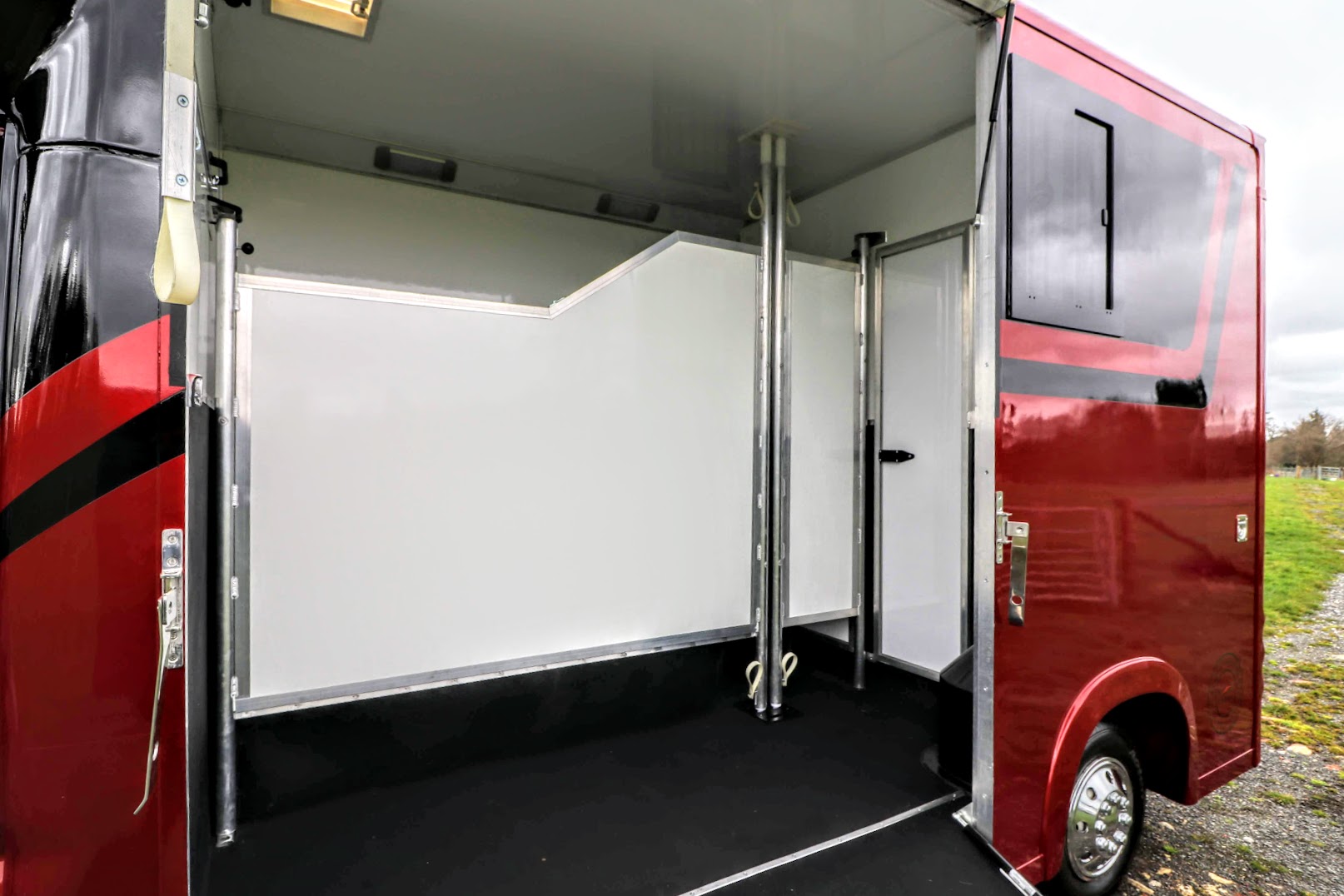

The two-part partition is vertically hinged and locked to the floor and roof to stop any twisting effect with horses leaning on it. Both partition parts are hinged and will fold back for easy loading.



The lower ramp design is ultra-strong and impressive, yet easy to lower and raise. It is fabricated from a thick box-section aluminium frame that measures a full 11.5 centimetres (4.5″) in depth. This ramp has been tested to withstand horse weights of up to 900 kgs in use with our customers and is a proven strong and robust structure.

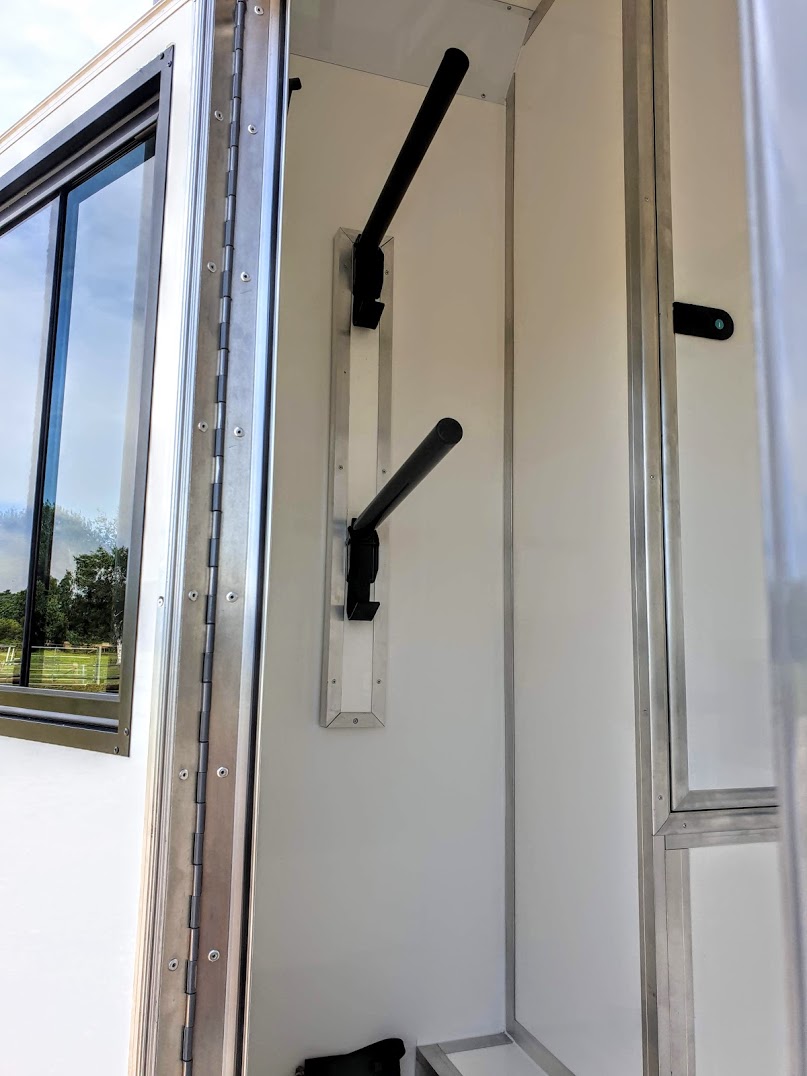

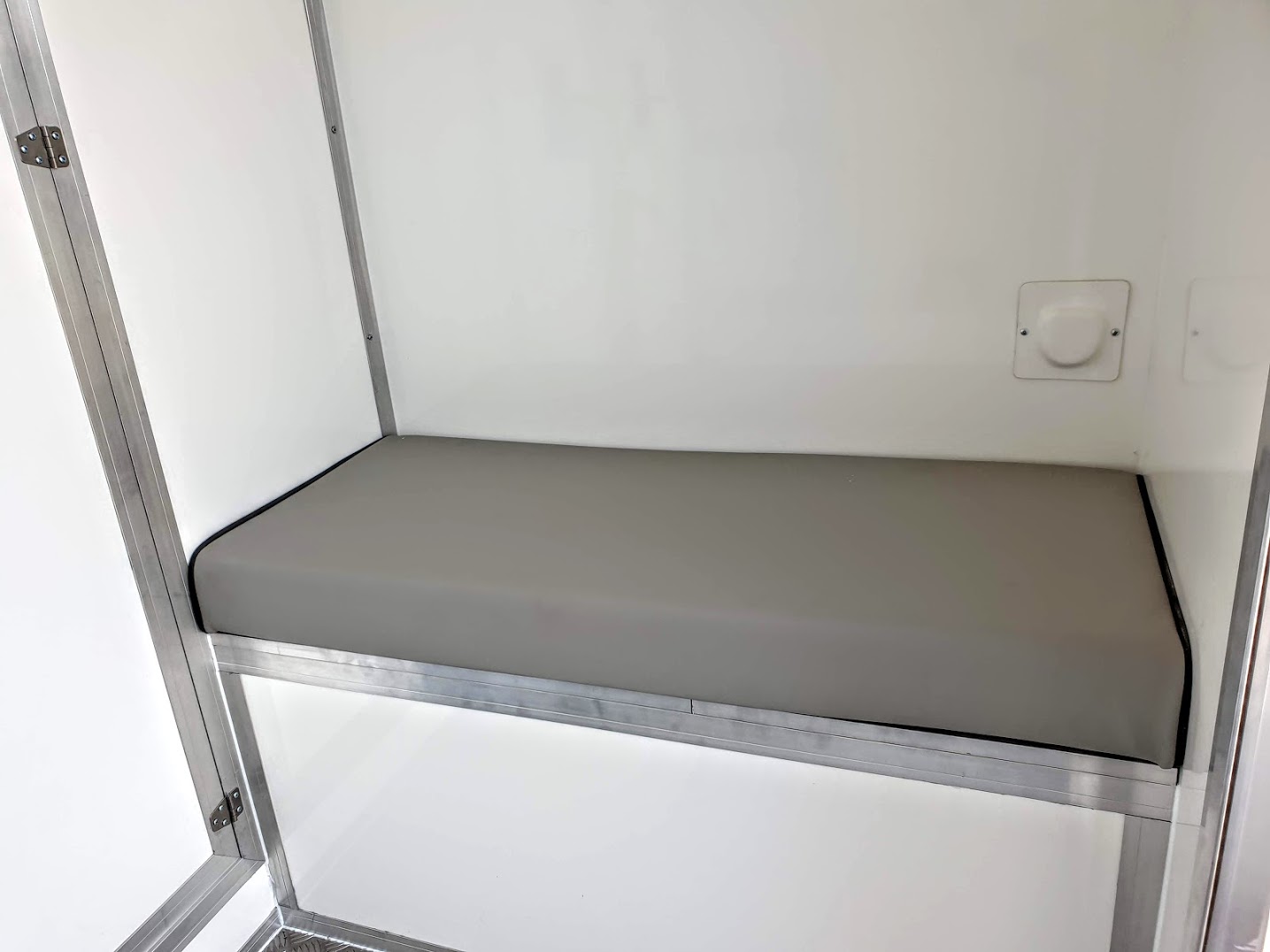

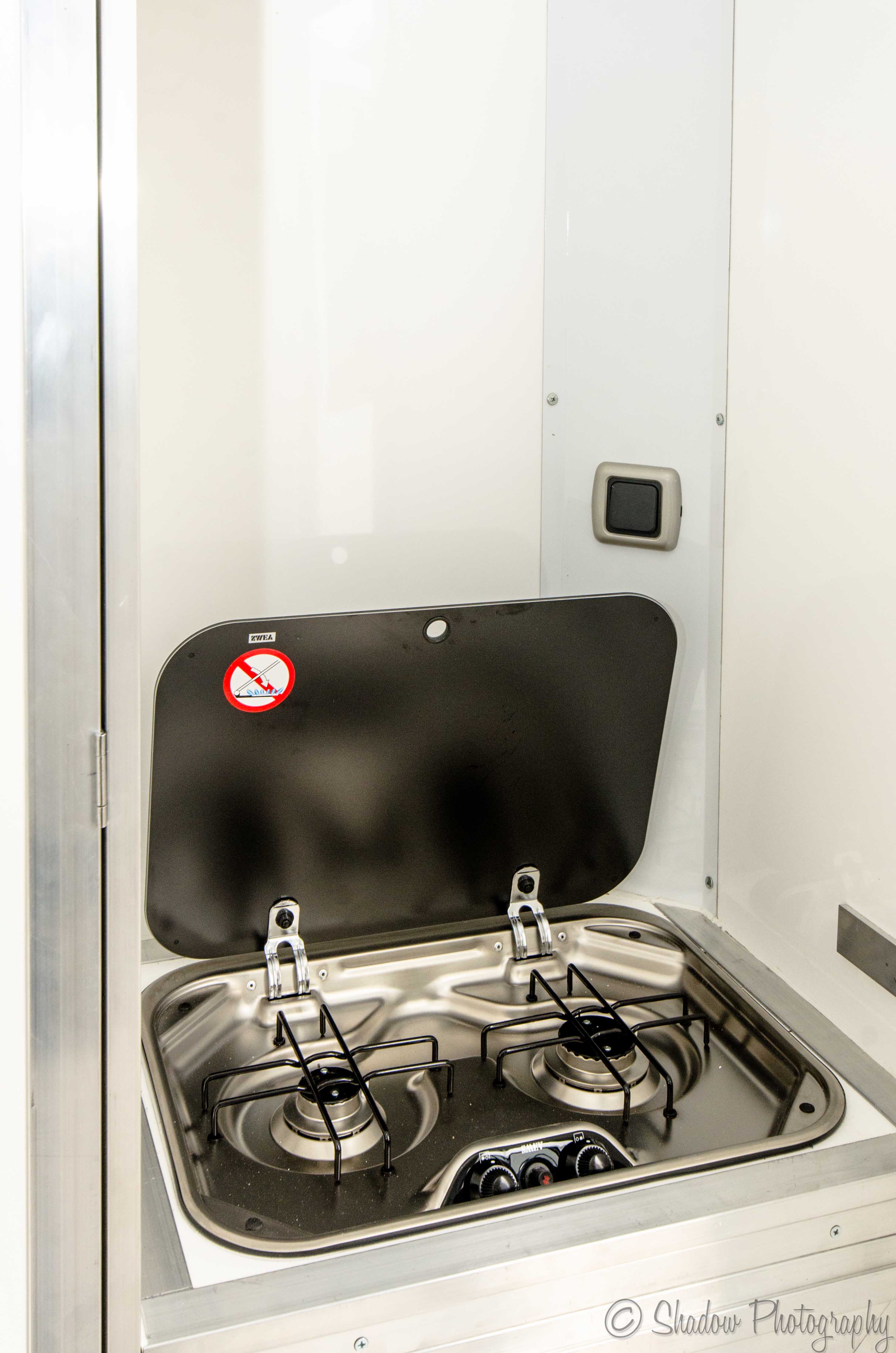

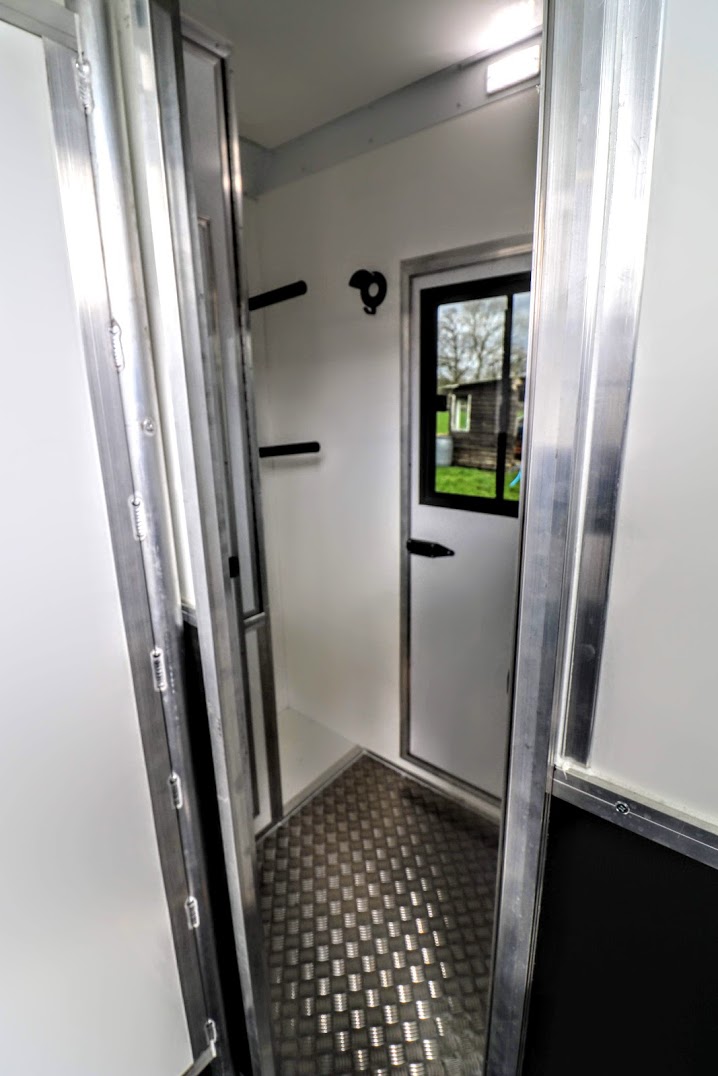

There is a fully separate groom’s area or rider’s living area behind a full height bulkhead. This offers simple day accommodation, or alternatively, it can be fitted with a multitude of options including sleeping, cooking facilities and power options, with a lot more besides.

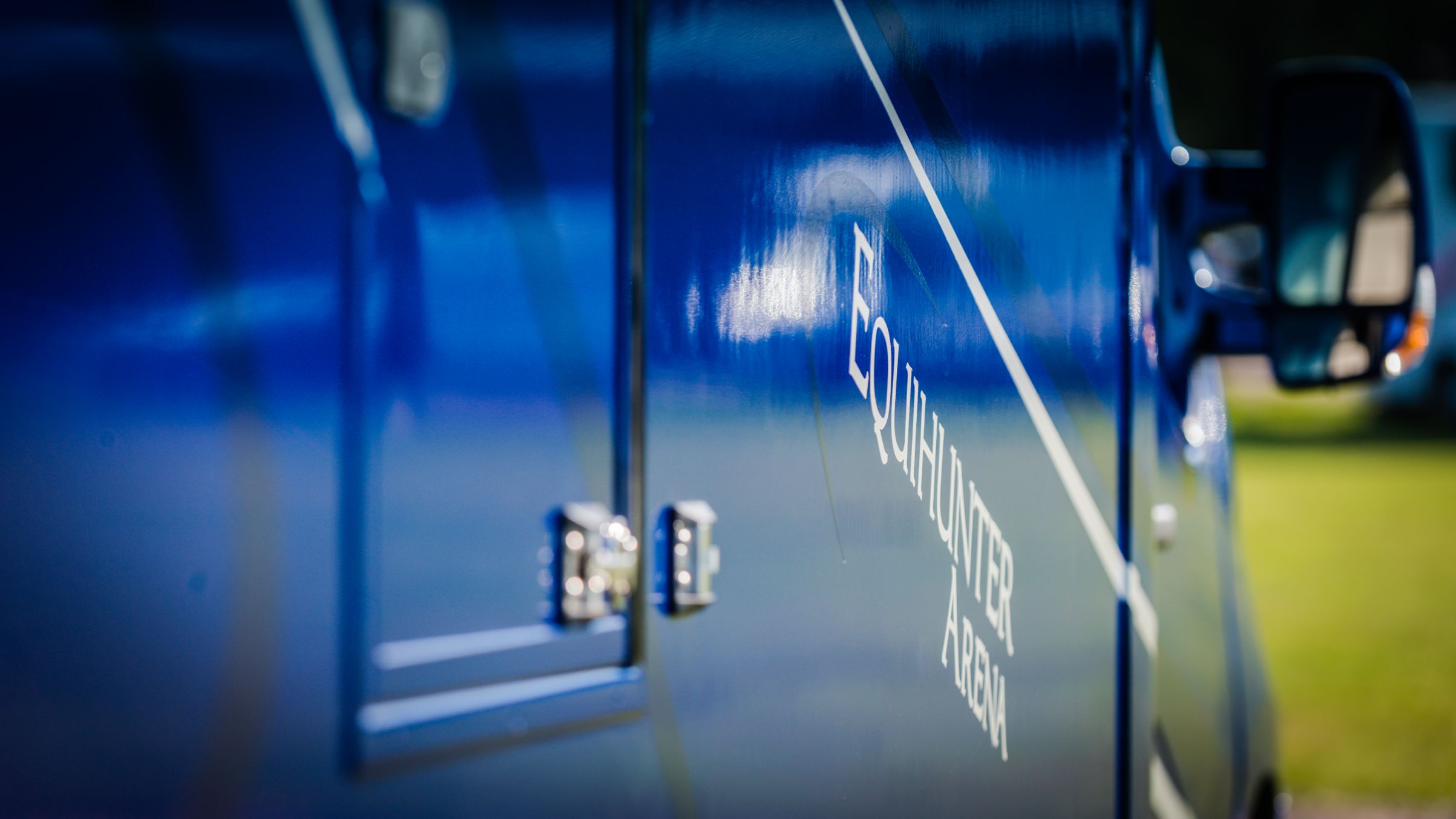

The standard build price also includes the full equihunter graphics set, including the black side “window” design and luton dome plus and branding and lettering, finished in a non-metallic paint colour of your choice. Metallic finishes are also available. The dome front also comes with day ultra-bright running LED lights. There are three tinted opening flush bonded windows, two in the horse area and one in the back door to the living space.

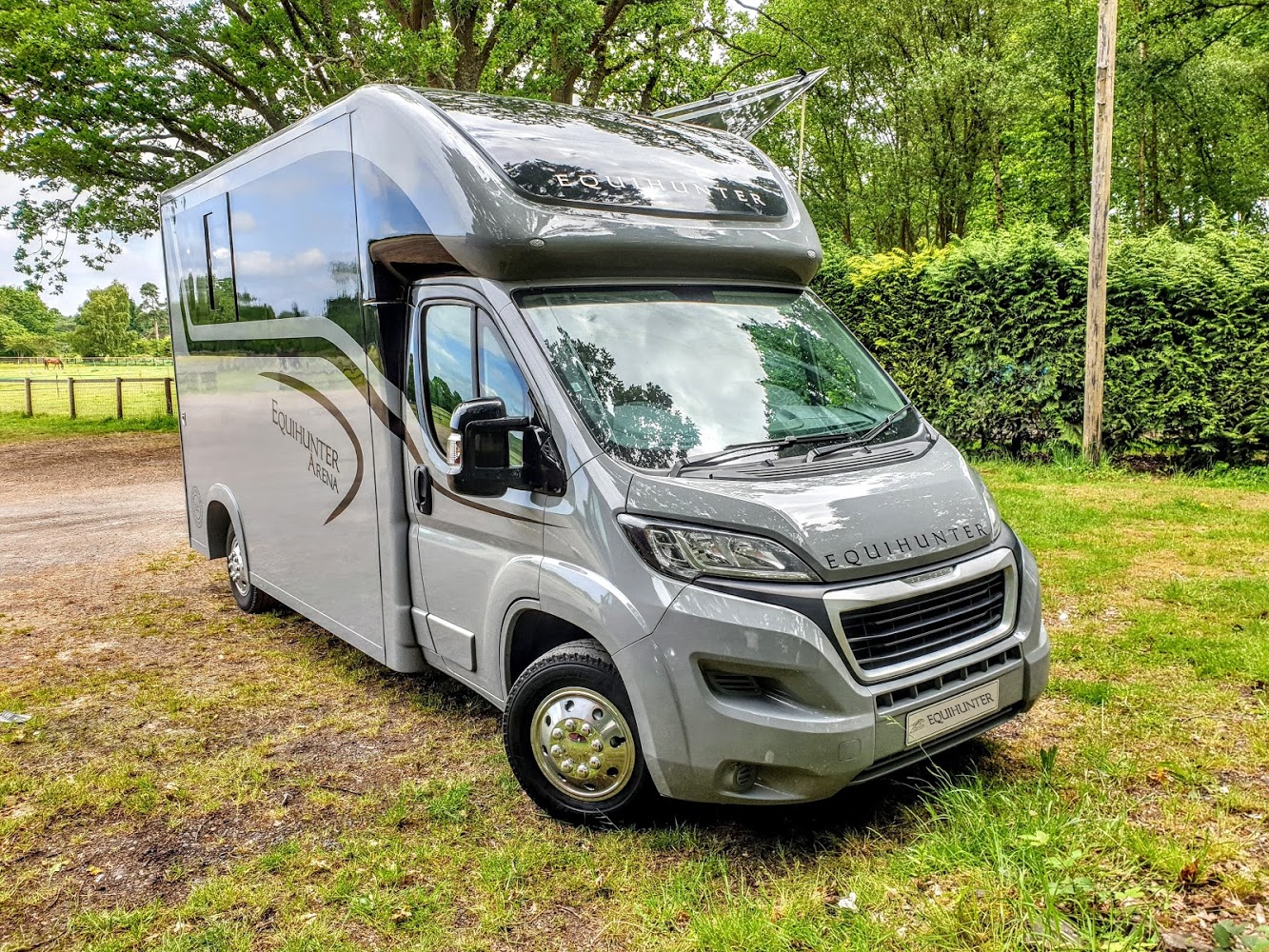

The Equihunter Arena 3-5t Horsebox The Equihunter Arena 3-5t Horsebox


Choose additional fixtures, fittings and equipment from a list of over 70 optional extras.  You can request our fully priced Arena Information Pack by emailing us at sales@equihunter.com

Arena prices start at just £19,990 plus a chassis and VAT, plus your choice of optional extras

Equihunter Arena 3.5 Tonne HorseboxA deposit of £1,000 including VAT will reserve you a place in our build diary


Some dimensions in metres

  • Horse Area – H: 2.41 x W: 2.11 x L: 2.60
  • Living Area  – H: 2.41 x W: 2.11 11″ x L: 1.05

Arena prices start at just £19,990 plus a chassis and VAT, plus your choice of optional extras
