THIS FABULOUS EQUIHUNTER ARENA 3.5 TONNE HORSEBOX IS AVAILABLE FOR IMMEDIATE SALE
It’s based on a 2020 registered Citroen Relay chassis with only 22k miles
Full specifications are set out below
This beautiful Equiuhunter Arena model offers safe and comfortable equine transport with an absolute focus on strength and rigid construction. It provides spacious equine travel with a stallion design horse area.
PRICED AT £42K INCLUSIVE
FOR MORE INFORMATION, PLEASE CONTACT CHRIS ON …
OFFICE: 01342 545030
MOBILE: 07904 818389
EMAIL: SALES@EQUIHUNTER.COM
SEE THE FULL ONLINE IMAGE GALLERY BY CLICKING HERE
Some more images are in the galleries below…
The Arena benefits from many high strength features such as a full-size steel cab wall bulkhead and an ultra-thick bottom ramp door that is manufactured with box section aluminium, it’s over 3 inches thick and is braced to the body with a heavy-duty stainless steel full-width piano hinge. We also use hi-grip rubber matting and fit lateral aluminium anti-slip struts.
In the horse area, the floor is manufactured using aluminium with a strong rubber one-piece rubber matting on top. The wheel arch covers benefit from a hot sprayed rubber coating that adds strength and also has a sound deadening quality for those moments when impatient horses paw the arches.
There is a full-length aluminium strengthening strut to the offside wall just above the EVA wall covered kick-boards. We fit a doubled skinned insulated roof and have added high intensity LED lights that offer full illumination of the tramp when loading and unloading at night. The lights also offer automatic night lights (low lighting) that turn on with the vehicle lights.
The top ramp door rises on powerful gas rams and rests open at a very high angle of attack to endeavour to not spook nervous horses. A 4-way roof vent offers a high level of ventilation in conjunction with large tinted opening bonded windows adjacent to both stall ends.
The two-part partition is braced with a 3-inch tubular aluminium frame to both partition sections. We have also fitted drain holes. A large storage area is available in the luton cab area, this also features a locking hatch door. There is a twin camera CCTV system with horse area and reversing cameras.
Full Specifications
The Chassis Vehicle
Citroen Relay 35 L3H2 Enterprise BlueHDI
AdBlue system
2020 registered chassis vehicle with 22k miles
Comes with engine start/stop technology
Engine size 2200cc
4 cylinder fuel injected turbo diesel
Engine power 138 BHP
First registered 20th June 2020
First MOT required on 29th June 2023
13 months manufacturers warranty
Euro emissions status 6ao

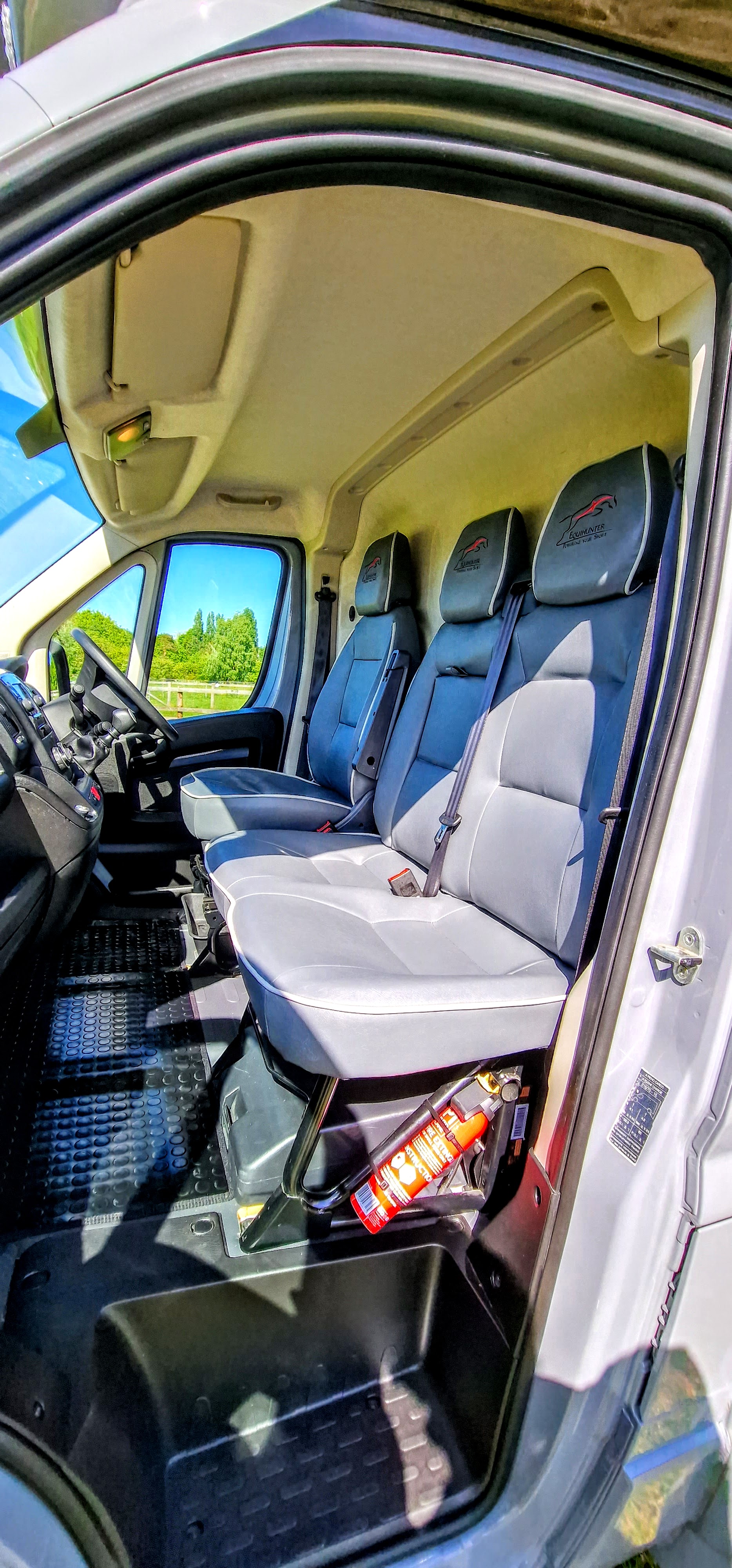

In the cab
Bluetooth
Touchscreen radio with AM/FM/ DAB
Inbuilt TomTom SatNav
Media USB connection
Reupholstered cab seats in grey leather grain easy clean vinyl
Removable rubber floor mat
Dash-mounted CCTV monitor
Windscreen mounted phone holder
12v USB power outlet
PRICED AT £42K INCLUSIVE
FOR MORE INFORMATION, PLEASE CONTACT CHRIS ON …
OFFICE: 01342 545030
MOBILE: 07904 818389
EMAIL: SALES@EQUIHUNTER.COM

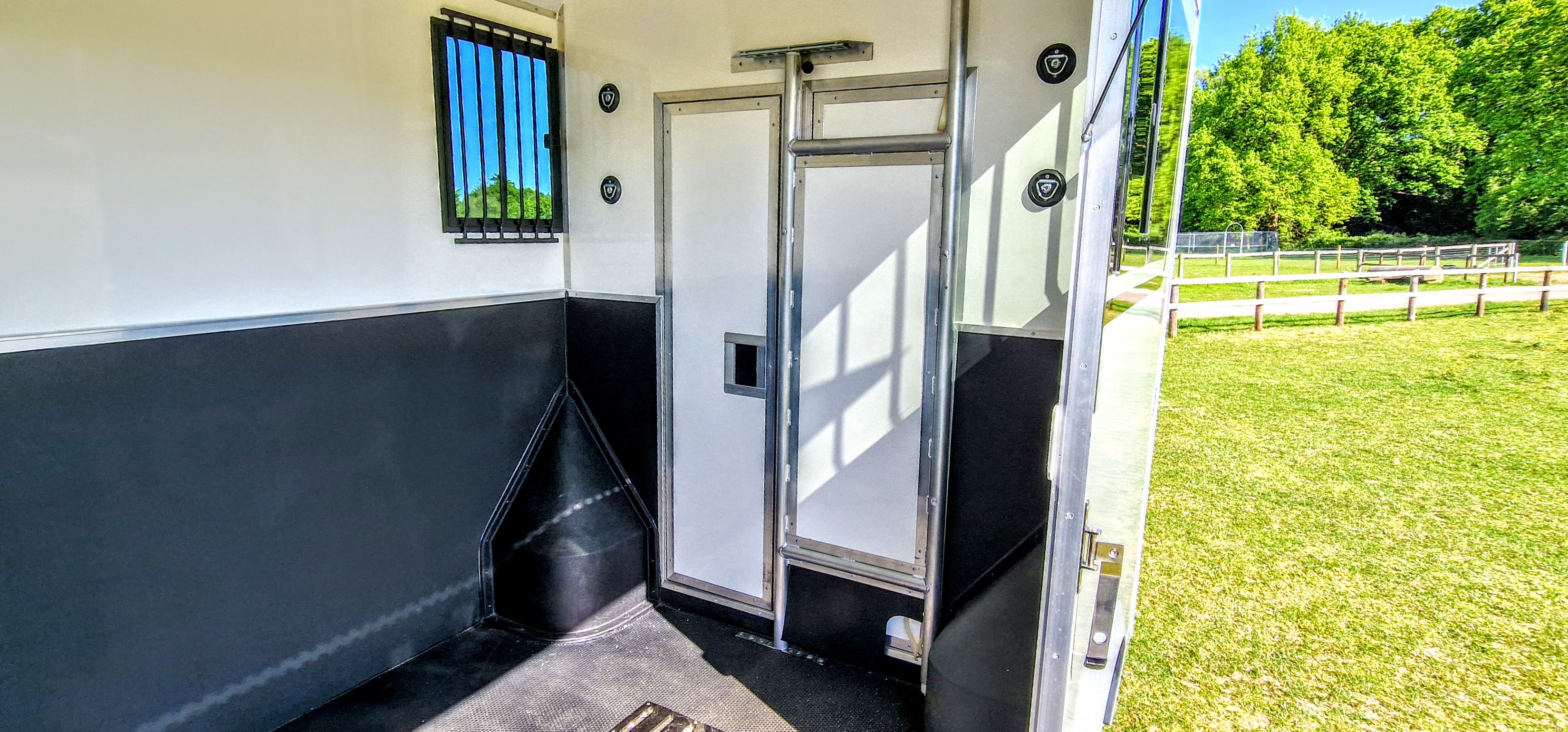

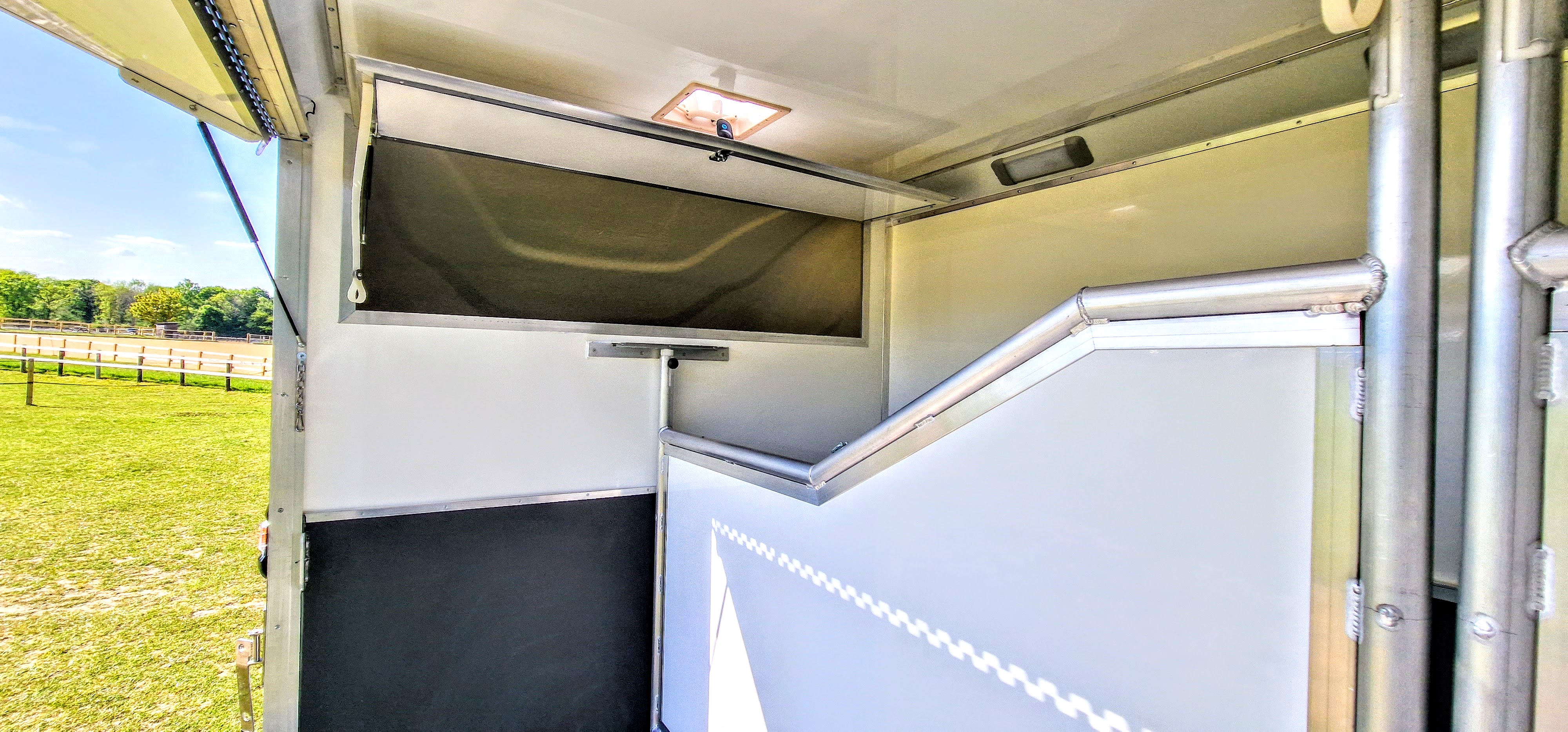

In the horse area
Horse Area Dimensions (Metric) – H: 2.41 x W: 2.11 x L: 2.60
Ultra-strong ramp (over 3″ thick) inbox section aluminium
Payload 970kgs
Insulated twin skinned roof
Two large opening locking bonded tinted windows, one per front of each stall
White aluminium coving
Twin liquid drain holes
High intensity (low power consumption) switched LED lighting
Hi-grip rubber ramp matting
Ramp gaiter fitted
Roof vent – manual 4-way
Twin high-pressure rams
A stainless steel locking mechanism
Stallion designed two-part partition
Partition strengthening frame to both parts with tubular aluminium frame
Aluminium flooring
On-piece rubber floor mat
Rubber covered wheel arch covers
Adjustable width partitions
Vertical “H” shape partitions with soft close floor and roof sprung piston locking
EVA covered kickboard
Lateral strengthening strut to offside sidewall
Aluminium beading
Upper ramp “door open” in-cab warning alarm
(triggers when activating ignition with open top door)
Twin locking top ramp door
High-pressure top ramp door gas ram support
High opening angle to the top ramp door
Ramp tie back chain
4 tie rings, 2 per stall
Solid full height & width bulkhead to the living area
Two stainless sprung bolts to living door locks

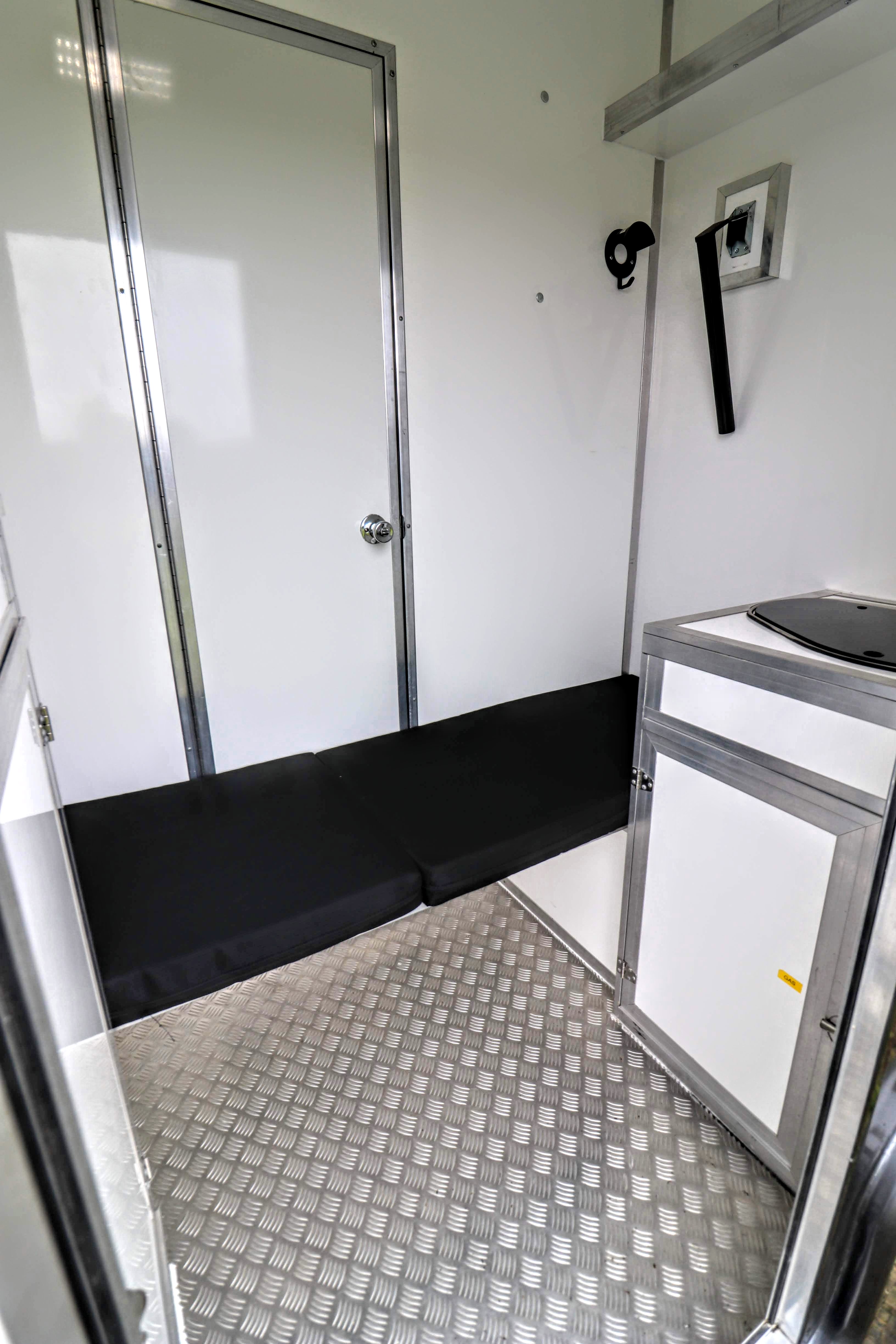

In the living area
Living Area Dimensions (Metric) – H: 2.41 x W: 2.11 x L: 1.05
Aluminium checker-plate flooring
Seating for two in a bench seat
Easy clean bench seat cushion pad
Under-seat storage
High intensity switched LED light
Light switch unit with dual USB power outlet
Wardrobe with locking door
Wardrobe with recessed boot storage, hanging rail & high shelf
Twin folding steel saddle poles
Two bridle hooks
Twin doors to horse area each with stainless sprung bolts
Two further base of door sprung bolts (anti kick)
Locking rear door with large locking bonded tinted opening window
Multiple Coat hooks
Vintage-look leather strap door retainer
Exterior features
Strong rear step with steel support and aluminium shielding (anti-scratch)
Reversing sensors
Rear door sprung retainer
Two side wall mounted stainless steel sprung tie rings
Classic Equihunter paint design and graphics styling
Finished in Audi Nardo Grey
Reversing camera
High and low-level vehicle lighting
